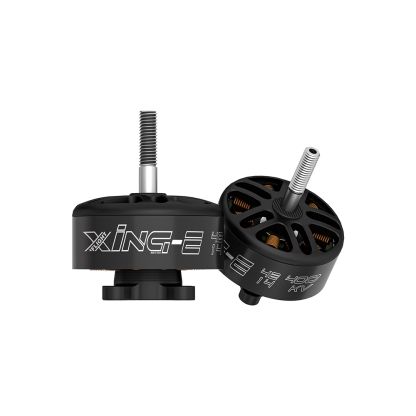

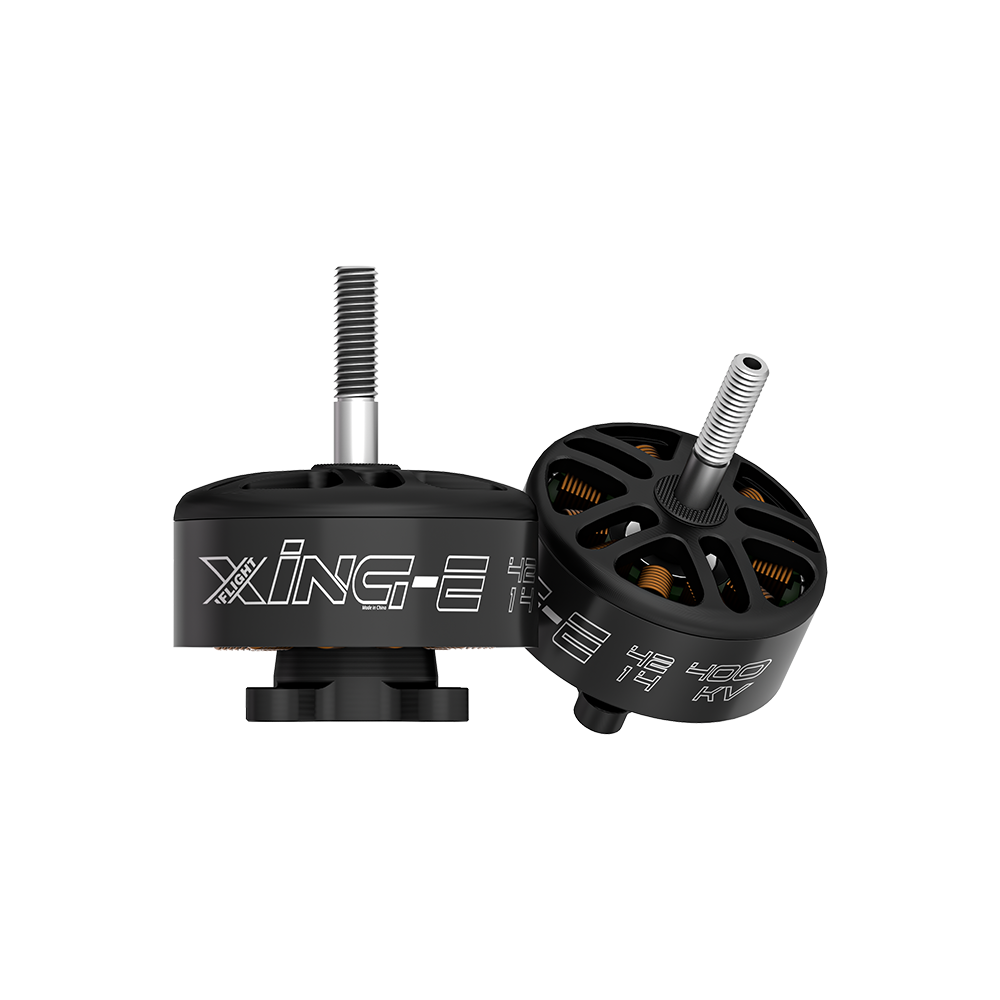

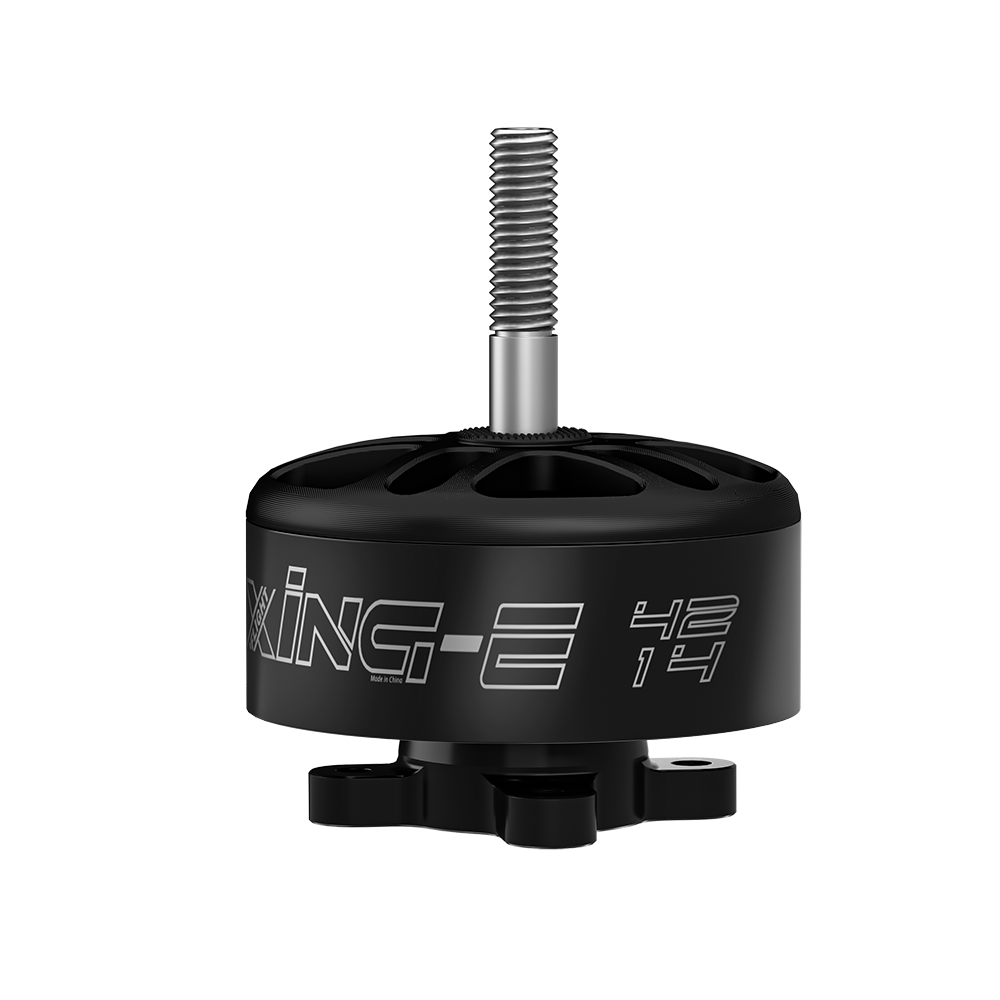

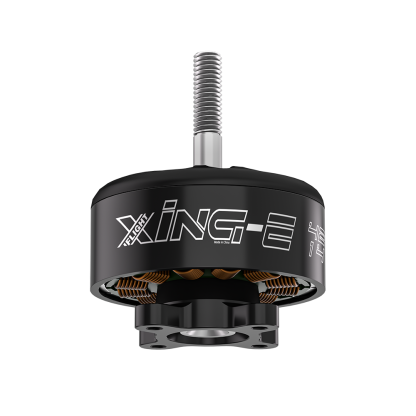

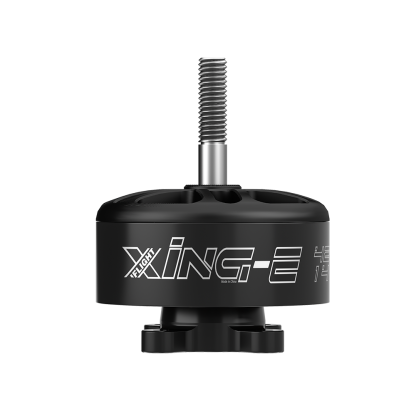

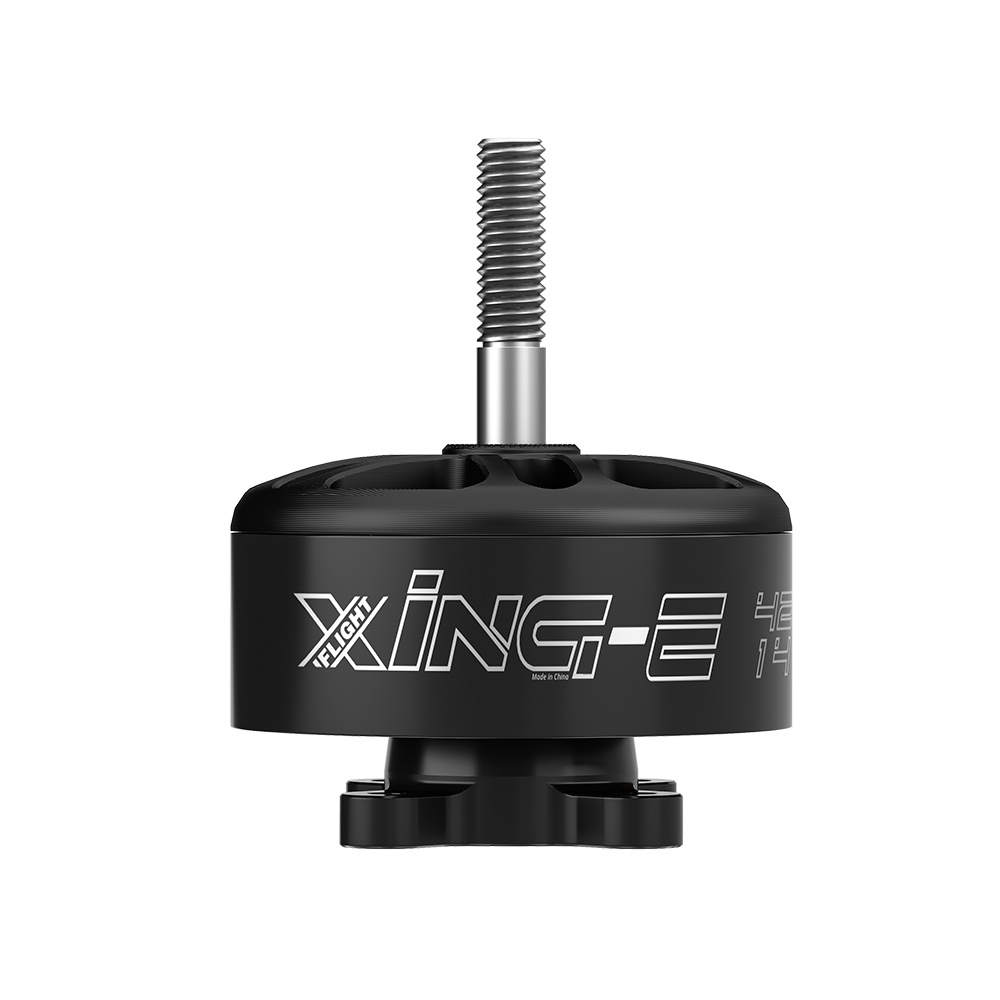

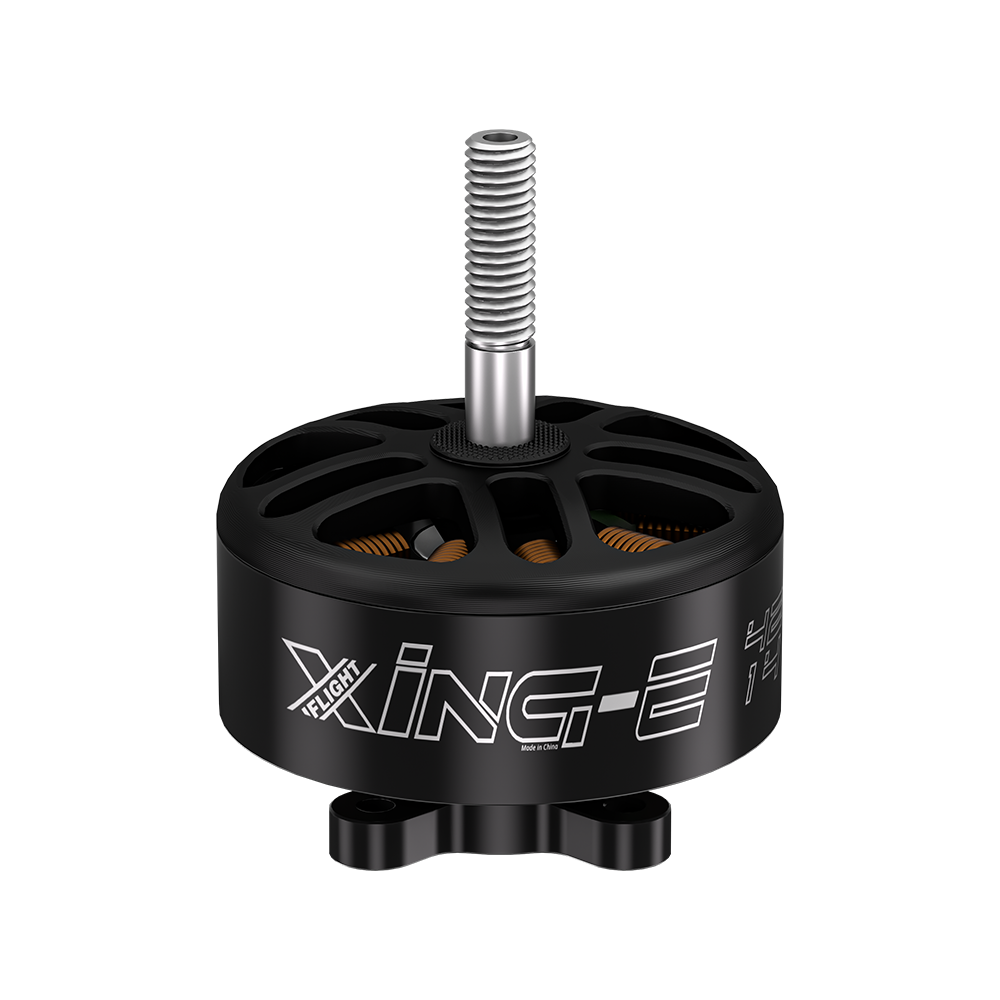

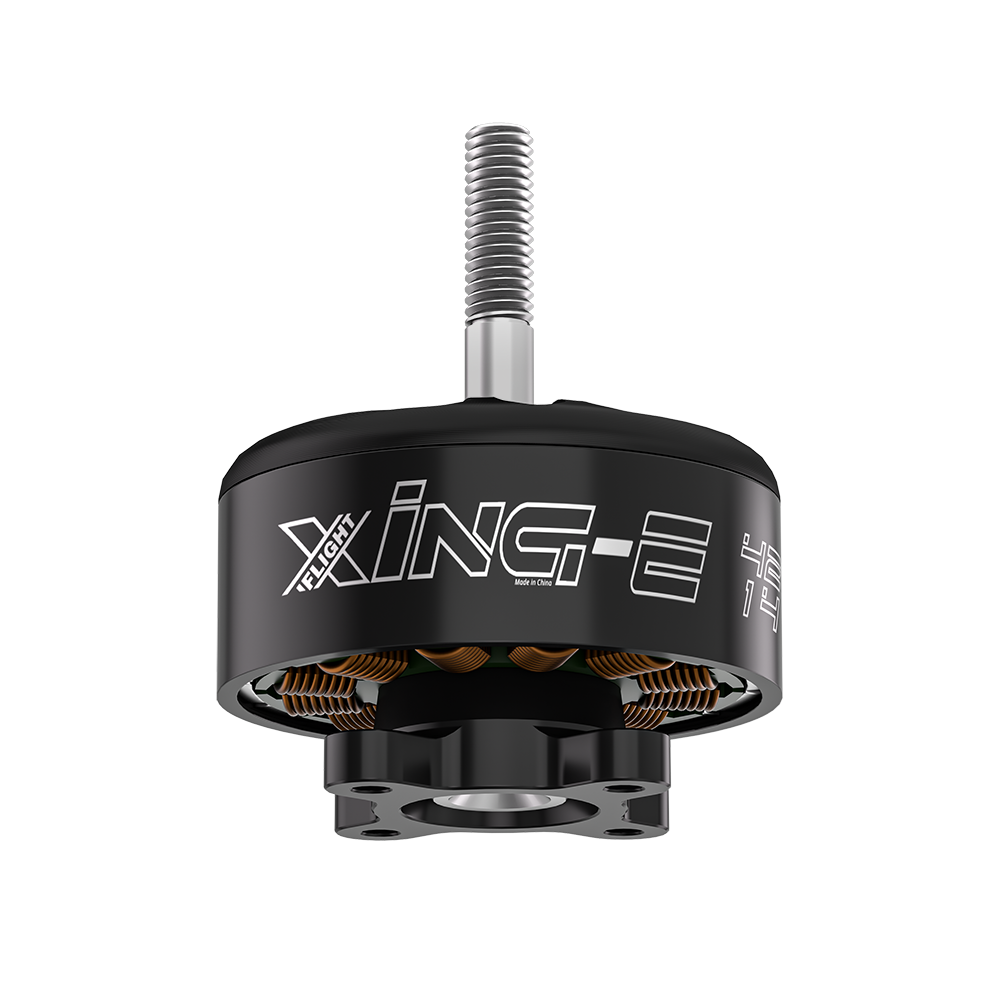

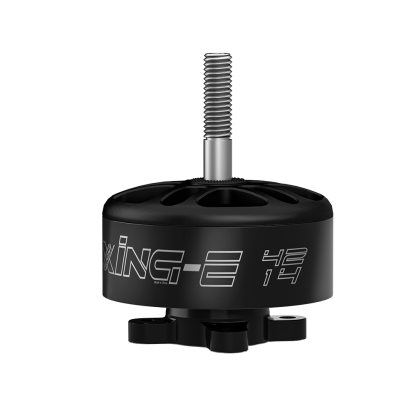

Introducing the newest high-performance motor from Xing-E.
Crafted to push the boundaries of what’s possible, this motor harnesses the latest advancements in technology, ensuring reliable and consistent performance. Unlock the full potential of your X413 Frame Kit and experience the difference that Xing-E’s cutting-edge innovation can make.
Changelog
Oct. 26, 2024 : The screws specification in Packing is updated from M4x10 screws to M4x8mm.
Specifications
KV: 400KV
Weight(included wire): 239g
Dimension: φ48.6*60.5mm
Interphase Resistance: 83.4mΩ
Input Volts: 32V
Peak Current: 65.54A
Max Watt: 3229W
Mounting Holes: φ30*30mm-M4mm
Rotor Specifications: Segmented Bell
Shaft Diameter: 6mm
Shaft Protruding Length: 26.5mm
Lead: 800mm/14AWG
Magnet: N48SH Curved
Configuration: 12N14P
Bearing Specification: φ12*φ6*4
Winding: Single Strand copper winding
Packing List
1 x XING-E 4214 400KV Motor
4 x M4x8 screws
1 x M6 Flange Nut
